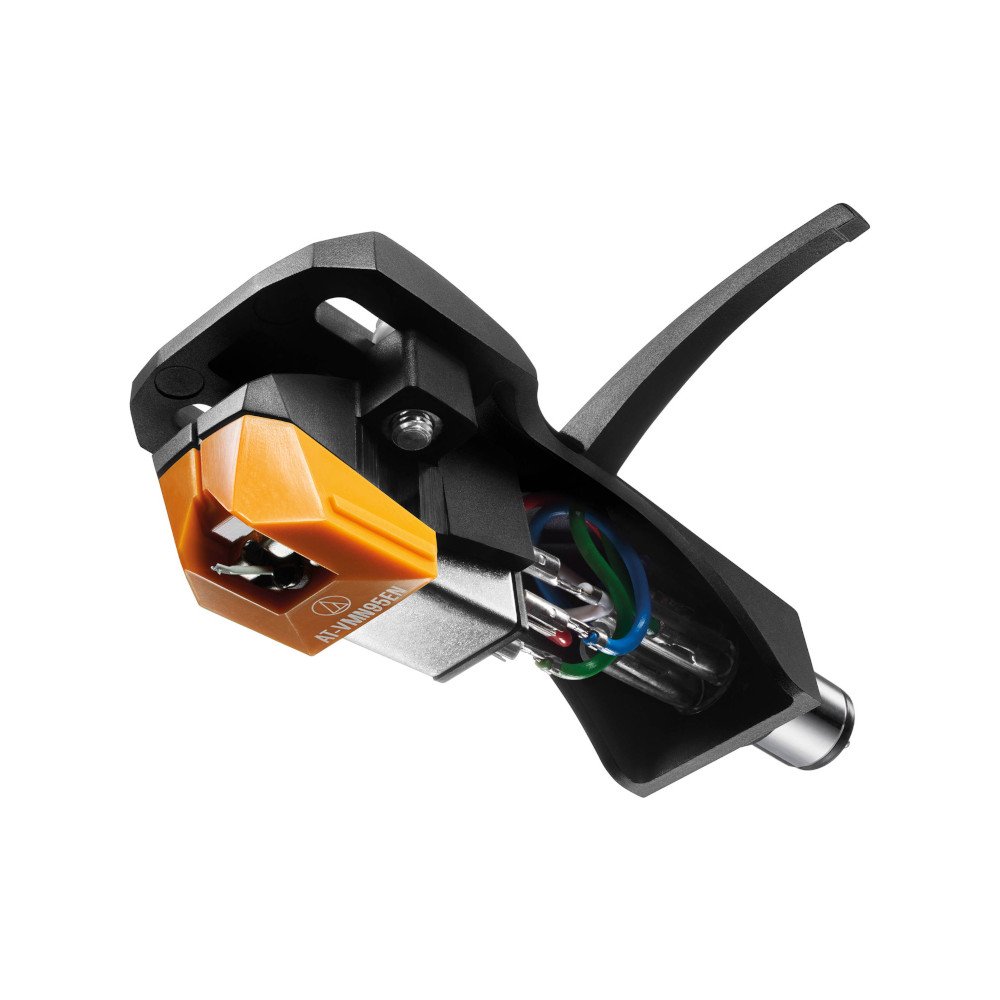

The AT-VM95EN/H is the acclaimed VM95 cartridge from Audio Technica, offering high performance sound reproduction at a great price point. We love the Elliptical Nude variant here with excellent dynamic range, punchy low and crispy vocals.
| Cartridge & Stylus |
| Frequency Response |
20 - 23,000 Hz |
| Channel Separation |
22 dB (1 kHz) |
| Vertical Tracking Angle |
23° |
| Vertical Tracking Force |
1.8 to 2.2g (2.0g standard) |
| Stylus Construction |
Nude Round Shank |
| Recommended Load Impedance |
47,000 Ω |
| Coil Impedance |
3.3 kΩ (1 kHz) |
| DC Resistance |
485 Ω |
| Coil Inductance |
550 mH (1 kHz) |
| Output Voltage |
3.5 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance |
2.0 dB (1 kHz) |
| Stylus Shape |
Elliptical |
| Cantilever |
Aluminium Pipe |
| Static Compliance |
20 x 10 – 6 cm / dyne |
| Dynamic Compliance |
7 x 10 – 6 cm / dyne (100 Hz) |
| Mounting |
1/2” centres |
| Dimensions |
21.2 × 21.4 × 62.4 ( H x W x D mm) |
| Model |
AT-VM95EN/H |
| Recommended Load Capacitance |
100-200 pF |
| Replacement Stylus |
AT-VMN95EN |
| Stylus Size |
0.3 x 0.7 mil |
| Type |
VM Stereo Dual Magnet |
| Weight |
15.5 g |
| Wire Used for Coil |
T.P. Copper |
