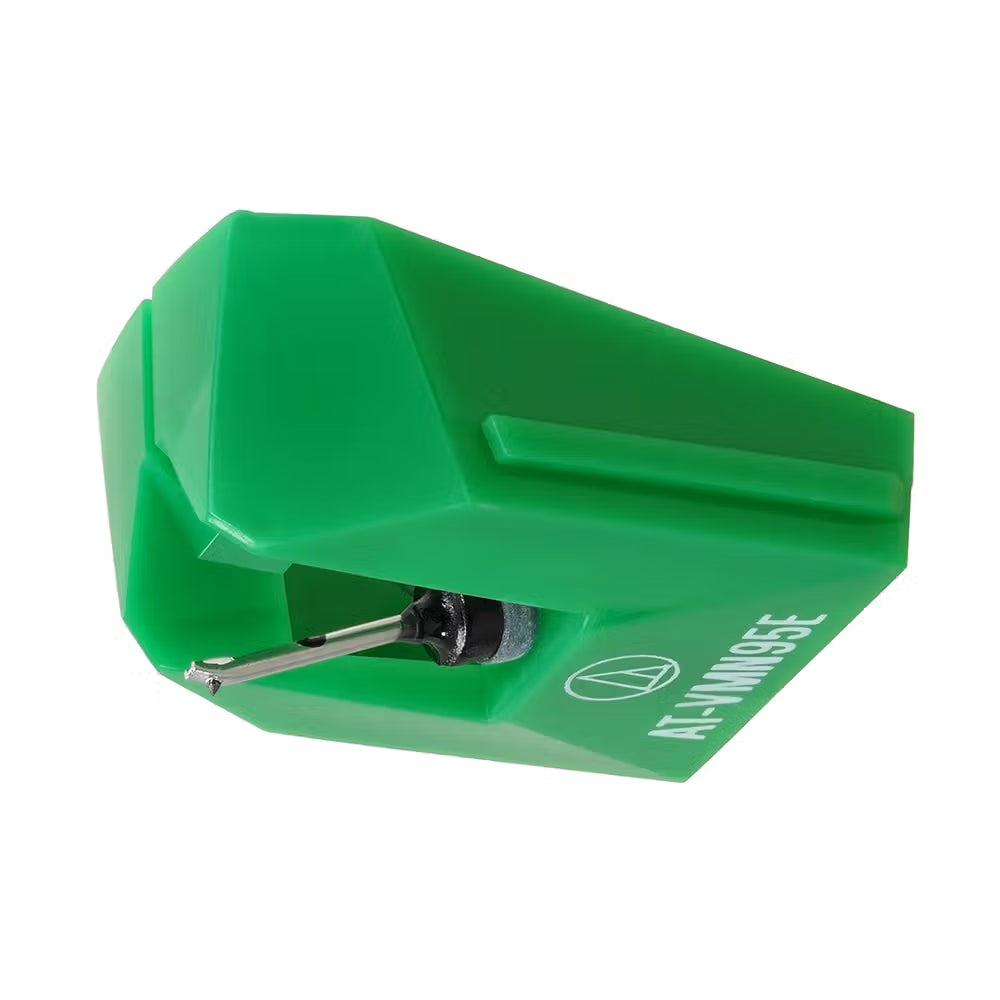

Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.
Every cartridge diamond stylus becomes worn after a period of play. Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus. The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.
| Frequency Response |
20 - 22,000 Hz |
| Channel Separation |
20 dB (1 kHz) |
| Vertical Tracking Angle |
23° |
| Vertical Tracking Force |
1.8 to 2.2g (2.0g standard) |
| Stylus Construction |
Bonded Round Shank |
| Recommended Load Impedance |
47,000 Ω |
| Coil Impedance |
3.3 kΩ (1 kHz) |
| DC Resistance |
485 Ω |
| Coil Inductance |
550 mH (1 kHz) |
| Output Voltage |
4.0 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance |
2.0 dB (1 kHz) |

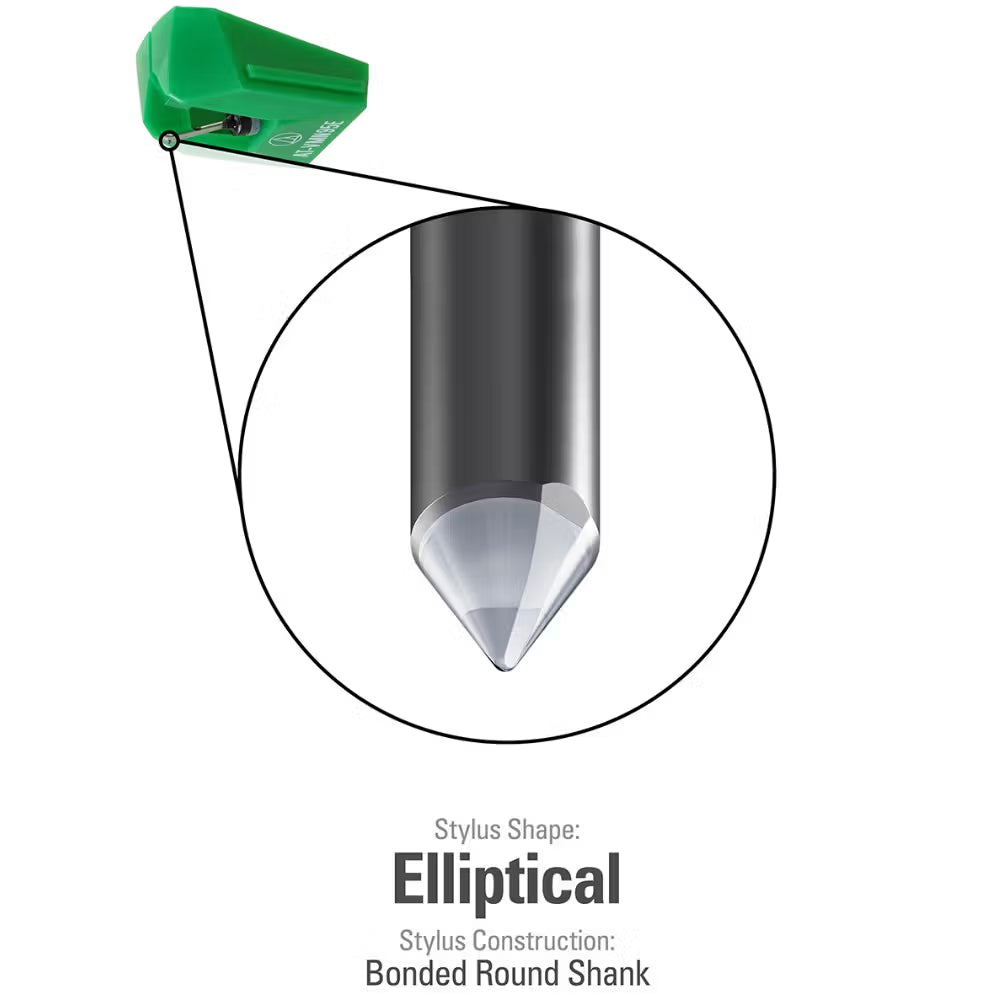

| Stylus Shape |
Elliptical |
| Cantilever |
Aluminium Pipe |
