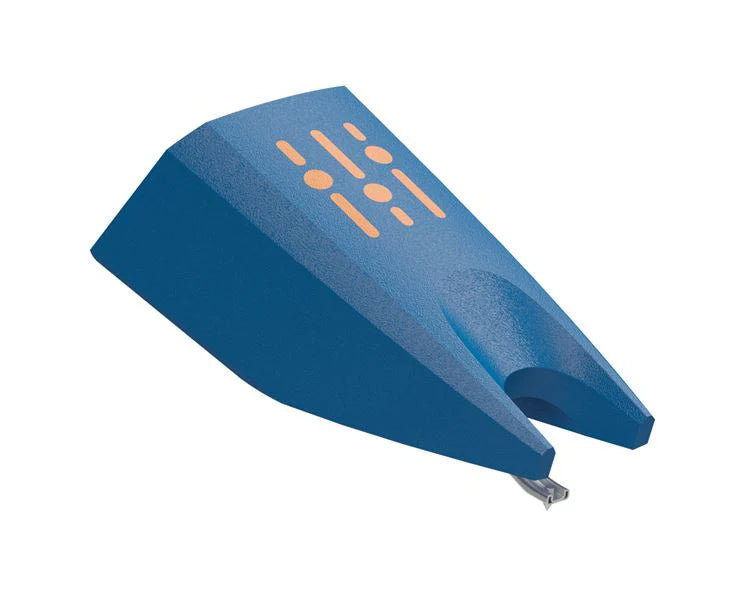

Ortofon DJ MKII stylus
Specifications
Larger, wider and more robust stylus body
Easier to grip and handle
Better fix by metal spring
Tactile feedback of correct mount
Large stylus viewing cut-out
Output voltage at 1000Hz, 5cm/sec. - 6 mV
Channel balance at 1kHz - 1 dB
Channel separation at 1kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-20.000 Hz
Tracking ability at 315 Hz at recommended tracking force - 100 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Spherical R 18 μm
Tracking force range - 3 - 5 g
Tracking force recommended - 4 g
Recommended exclusively for Concorde MkII DJ
