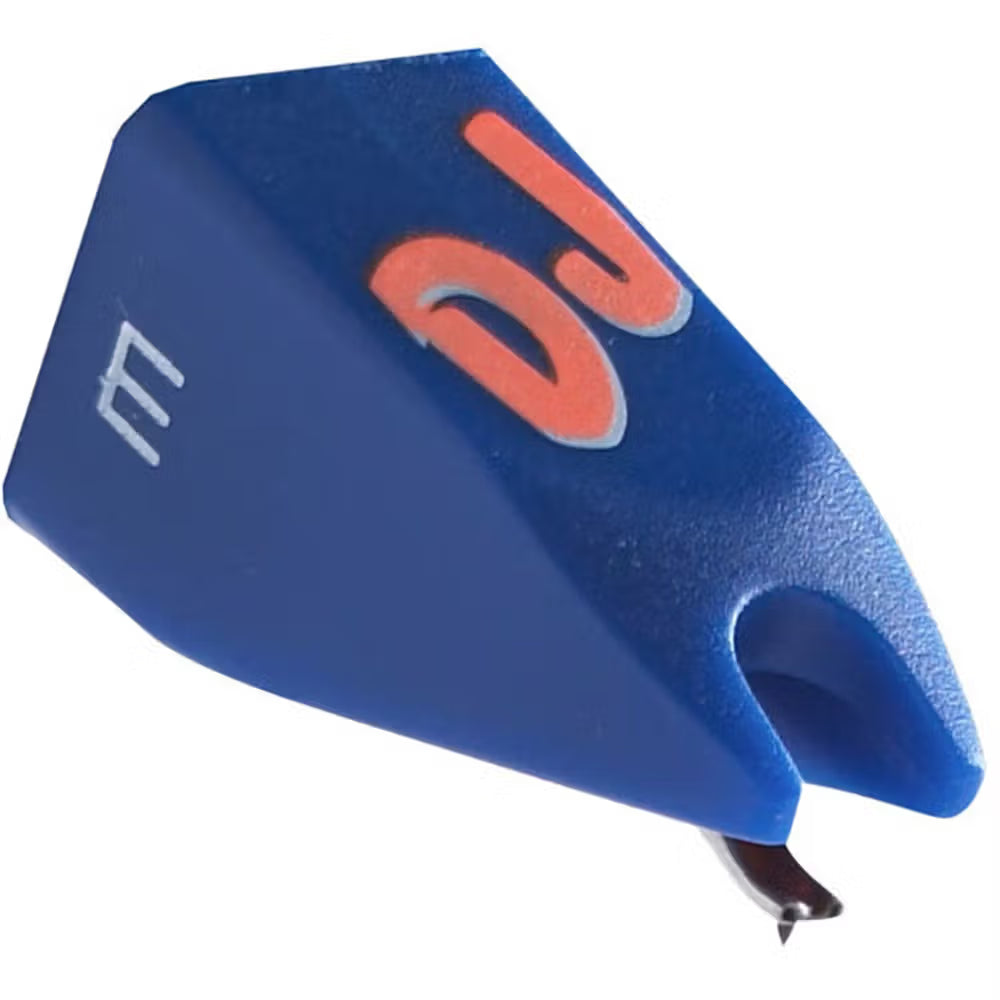

The DJ range from Ortofon has always been the jack of all trades coming in squarely in the middle of the lineup. The Elliptical version of the DJ S provides superior dynamic range and tracking whilst still maintaining excellent durability & low record wear.
NOTE: this suits MK1 style Ortofon DJ ONLY and will not fit DJ MK2 cartridges.
Specifications
- Output voltage at 1000Hz, 5cm/sec.: 6 mV
- Channel balance at 1kHz: 2 dB
- Channel separation at 1kHz: 23 dB
- Channel separation at 15 kHz: 15 dB
- Frequency range at -3dB: 20-22.000 Hz
- Frequency response: 20-20.000 Hz +/-2 dB
- Tracking ability at 315 Hz at recommmende tracking force: 80 μm
- Compliance, dynamic lateral: 9 μm/m N
- Stylus type: Special Elliptical
- Stylus tip radius: r/R 13/25 μm
- Tracking force range: 2,0-4,0 g (20-40 mN)
- Tracking force recommended: 3,0 g (30 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 750 Ohm
- Internal inductance: 450 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 200-600 pF
- Cartridge weight: 18,5 g
