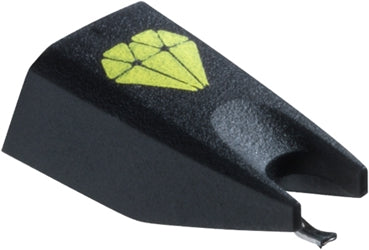

The CLUB stylus features
Absolute step up from Ortofon DJ range. The CLUB MK2 feels solid and provides amazing clarity, bass and tracking. Elliptical of course. This is it for a DJs DJ!
• Larger, wider and more robust stylus body
• Easier to grip and handle
• Better fix by metal spring
• Tactile feedback of correct mount
• Large stylus viewing cut‐out
Stylus CLUB Technical data
- Output voltage at 1000Hz, 5cm/sec. - 8 mV
- Channel balance at 1kHz - 1 dB
- Channel separation at 1kHz - 25 dB
- Channel separation at 15 kHz - 15 dB
- Tracking ability at 315 Hz at recommended tracking force - 100 μm
- Compliance, dynamic lateral - 14 μm/m N
- Stylus type - Special Elliptical r/R 13/25 μm
- Tracking force range - 2 - 4 g
- Tracking force recommended - 3 g
- Concorde cartridge weight - 18.5 g
- Recommended exclusively for Concorde MkII CLUB
