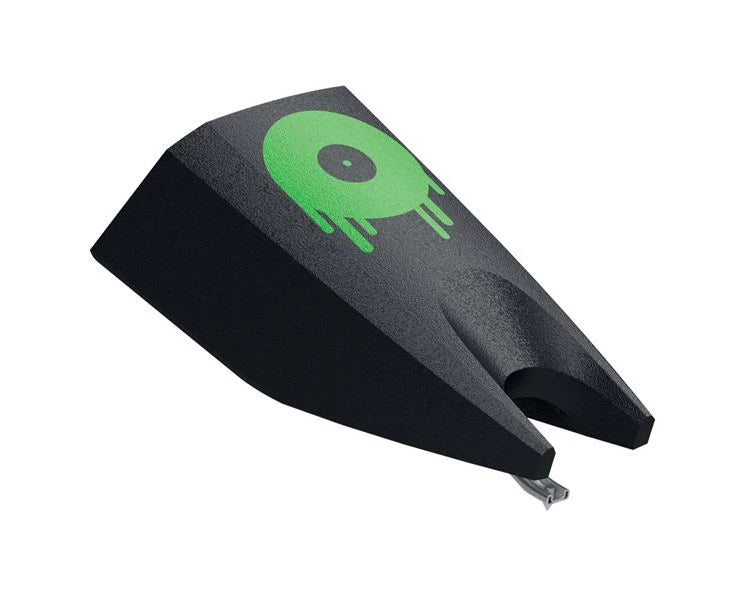

Replacement stylus offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.
Features
- Larger, wider and more robust stylus body
- Easier to grip and handle
- Better fix by metal spring
- Tactile feedback of correct mount
- Large stylus viewing cut-out
- Output voltage at 1000Hz, 5cm/sec. - 6 mV
- Channel balance at 1kHz - 1,5 dB
- Channel separation at 1kHz - 20 dB
- Channel separation at 15 kHz - 15 dB
- Frequency range at -3dB - 20-20.000 Hz
- Tracking ability at 315 Hz at recommended tracking force - 100 μm
- Compliance, dynamic lateral - 14 μm/m N
- Stylus type - Spherical R 18 μm
- Tracking force range - 2 - 4 g
- Tracking force recommended - 3 g
- Recommended exclusively for Concorde MkII MIX
