Ortofon just leveled up with the all-new VNL TRIX and VNL DANCE, the latest additions to the iconic VNL series. Built tough, tuned for performance, and ready for the stage. The VNL TRIX and VNL DANCE cartridges are engineered for DJs who demand both power and precision.
Ortofon just leveled up with the all-new VNL TRIX and VNL DANCE, the latest additions to the iconic VNL series. Built tough, tuned for performance, and ready for the stage. The VNL TRIX and VNL DANCE cartridges are engineered for DJs who demand both power and precision.

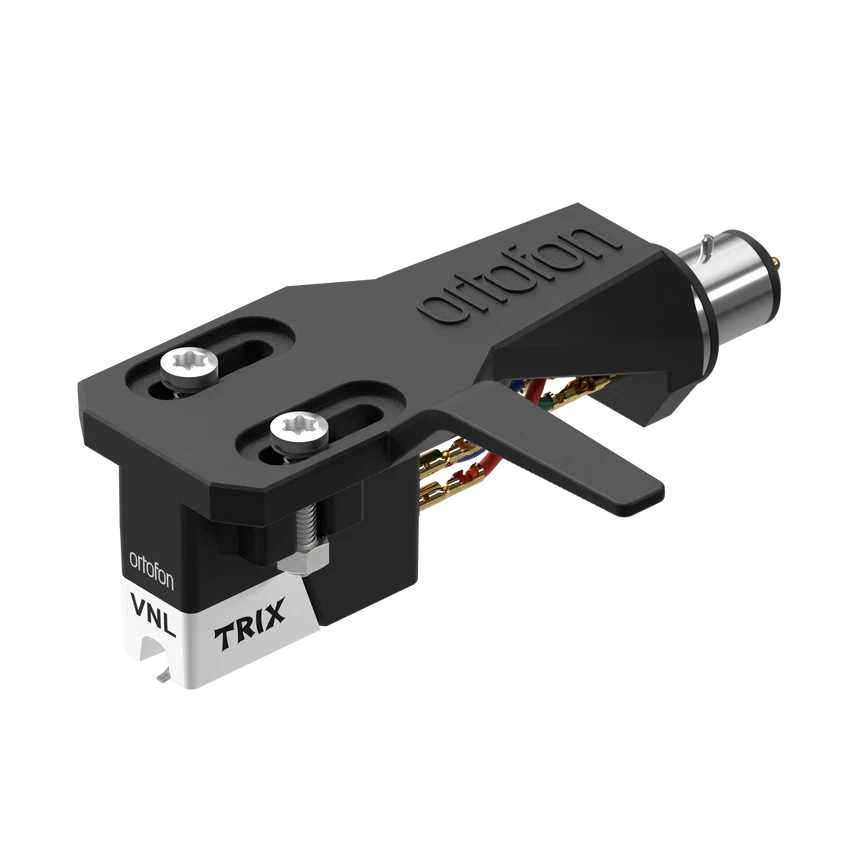

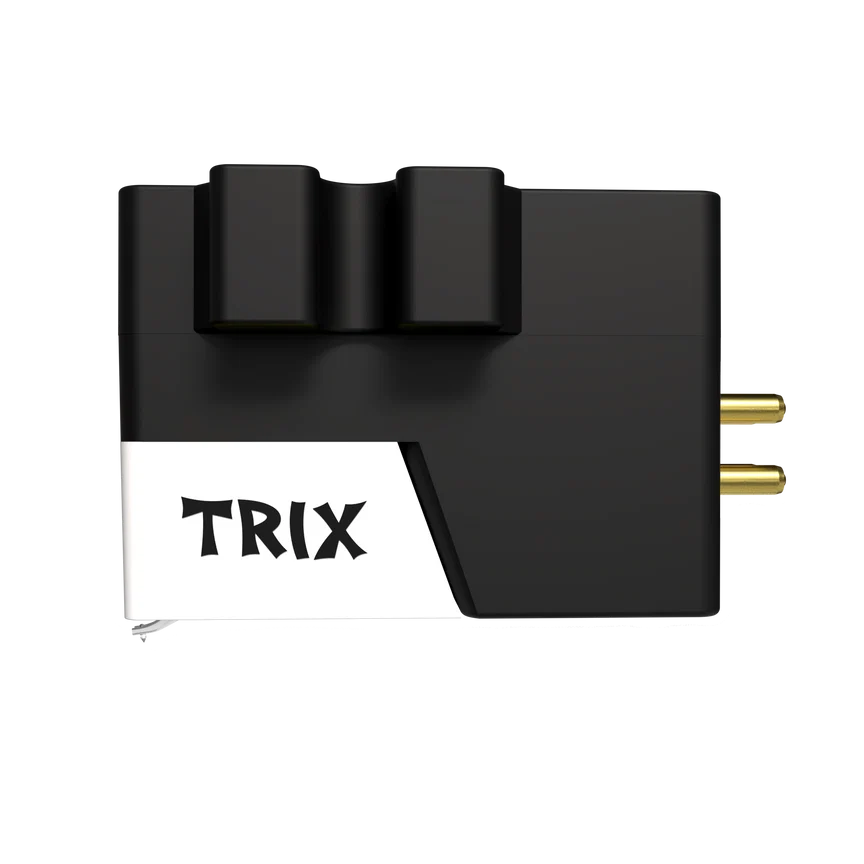

With a spherical stylus mounted on a rigid aluminum cantilever and Ortofon’s exclusive rubber suspension, VNL TRIX is built to take a beating. The fluorescent white stylus makes cueing even faster, and the premium tracking keeps it locked for pro use including heavy scratching and back-cueing.
-
-
Output voltage at 1 kHz, 5cm/sec
10 mV
-
Tracking ability at 315Hz
100 μm
-
Cantilever material
Aluminium
-
Stylus type
Spherical
-
Stylus tip radius
R 18 μm
-
Stylus suspension
Ortofon exclusive
-
Coil system
Quad coils
-
Coil wire material
OFC
-
Channel separation at 1 kHz
22 dB
-
Frequency response 20 Hz - 20 kHz
+/-3 dB
-
Dynamic lateral compliance
12 μm/mN
-
Recommended tracking force
4.0 grams
-
Cartridge weight
7 grams
-
Cartridge colour
Black
-
Stylus colour
White
